FortiGate Web Filtering Deep Dive: Architecture & Core Engines-Part 1

FortiGate Web Filtering is an enterprise-grade security profile within FortiOS that inspects, controls, and restricts web access based on FortiGuard category ratings and static URL definitions. Operating at the network edge, it intercepts HTTP/HTTPS traffic to block malicious command-and-control infrastructure, regulate workplace shadow IT, and enforce organizational web compliance policies.

Key Takeaways

• Multi-Layered Inspection Order: FortiOS processes web traffic in a strict sequence: Static URL Filter matches first, followed by the FortiGuard Category Lookup.

• Caching Optimizes Latency: The local FortiASIC and FortiOS cache architecture minimizes real-time cloud rating queries, dramatically improving packet processing times.

Introduction to Modern Web Security Challenges

The enterprise perimeter has dissolved. Corporate networks are no longer confined to physical campus buildings; they span hybrid cloud environments, remote workforces, and thousands of software-as-a-service (SaaS) applications. This structural evolution introduces serious security risks. Web-based vectors remain the primary delivery system for advanced persistent threats (APTs), ransomware, and phishing campaigns.

Modern organizations face a shifting battlefield across the web:

• Malware Delivery Vectors: Cybercriminals leverage automated drive-by downloads, compromised high-reputation websites, and malicious advertising (malvertising) networks to execute code on local endpoints.

• Shadow IT: Employees continuously adopt unapproved web services to transfer data, manage tasks, or host code. Without deep visibility, security teams cannot prevent data exfiltration through unauthorized personal cloud storage.

• Compliance and Legal Liabilities: Regulated industries (such as healthcare under HIPAA, financial systems under PCI-DSS, and public education under CIPA) require strict network enforcement to protect data and prevent exposure to illegal or explicit content.

Relying purely on classic layer-4 firewall rules to police web traffic is no longer sufficient. Security teams need an application-aware engine that evaluates the intent, context, reputation, and payload of every single HTTP and HTTPS session. FortiGate Web Filtering provides this exact defensive tier at the network boundary.

What Is FortiGate Web Filtering?

FortiGate Web Filtering is a stateful security module within FortiOS designed to identify, monitor, inspect, and restrict inbound and outbound web traffic. Rather than analyzing traffic based on simple source and destination IP addresses, the web filtering subsystem operates directly on application layer structures (HTTP headers, hostnames, uniform resource locators, and encrypted TLS server name indications).

The system integrates closely with FortiGuard Labs, Fortinet’s global threat intelligence infrastructure. FortiGuard continuously scans the internet, identifying malicious domains, evaluating real-time content changes, and categorizing billions of URLs into web categories.

When an enterprise administrator deploys a Web Filter Profile on a FortiGate appliance, the firewall intercepts user web requests, references local caches or cloud servers for precise ratings, and enforces chosen policies—such as allowing internal developers access to code repositories while blocking malicious command-and-control (C2) domains.

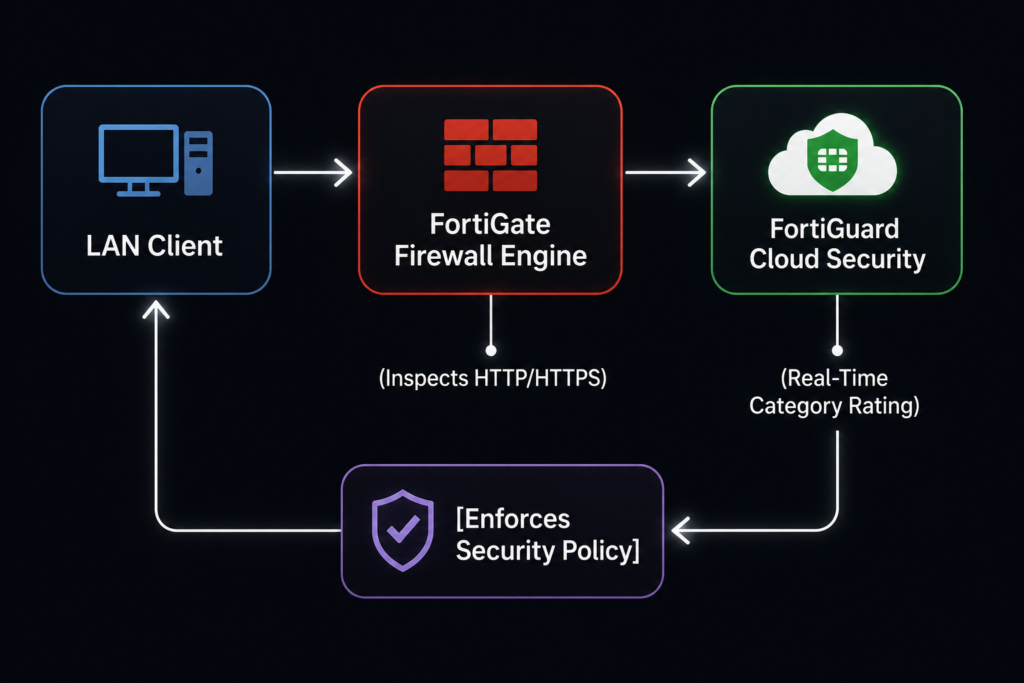

How FortiGuard Web Filtering Works

Every time a user inputs a URL into their web browser or an application initiates an automated web request, the FortiGate firewall executes an exact verification cycle:

[User Web Request]
       │
       ▼
[FortiGate Ingress Intercept] ───> [Check Local ASIC/RAM Cache] ───(Hit)───> [Enforce Verdict]
       │                                      │
     (Miss)                                 (Miss)
       │                                      │
       ▼                                      ▼
[Query FortiGuard Cloud Servers via Anycast] ─┘
       │
       ▼
[Return Category Rating & Log Session]

1. Ingress Intercept: The firewall captures the target hostname via the TLS Server Name Indication (SNI) in the client handshake, or via the explicit HTTP Host header if the connection is unencrypted.

2. Local Cache Check: Before querying external resources, FortiOS checks its highly optimized local RAM and hardware cache. If the URL has been recently evaluated, the firewall retrieves the classification directly from memory, processing the request in sub-milliseconds.

3. Cloud Rating Query: If a cache miss occurs, the FortiGate fires a compressed cryptographic query to the nearest FortiGuard Anycast or Unicast server array. This protocol operates over UDP port 53 or port 8888.

4. Real-Time Category Assessment: FortiGuard returns a precise response indicating which global security or corporate category matches the requested domain.

5. Policy Enforcement: FortiOS evaluates the assigned Web Filter Profile. If the category is permitted, the packet advances to the next inspection layer. If the category is blocked, FortiOS halts the connection and serves a custom replacement message to the end-user.

Understanding FortiGuard Categories

FortiGuard divides the web ecosystem into broad parental, functional, and security categories, grouped hierarchically to ease corporate policy configuration.

Global Category Classifications

• Security Risks: This group contains highly dangerous categories including Malicious Websites, Phishing, Spam URLs, and Dynamic DNS. Access to these should be restricted globally across all corporate profiles.

• Adult/Mature Content: Includes pornography, gambling, weapons, and explicit material. This category is typically restricted to control corporate liability and minimize workplace harassment risks.

• Bandwidth Consuming: Covers peer-to-peer (P2P) file sharing, streaming media services, and large file storage providers. Restricting these preserves costly enterprise WAN bandwidth.

• General Interest / Business: Encompasses search engines, finance portals, information technology sites, and news resources necessary for day-to-day operations.

FortiGuard Web Categories Comparison Table

FortiGate Web Filter Profile Deep Dive

Configuring web filtering inside FortiOS requires setting up a dedicated Security Profile. Let’s look closely at the components that make up a standard profile.

                  ┌─────────────────────────────────┐
                  │    Web Filter Profile Engine    │
                  └────────────────┬────────────────┘
                                   │
         ┌─────────────────────────┼─────────────────────────┐
         │                         │                         │
         ▼                         ▼                         ▼
┌─────────────────┐       ┌─────────────────┐       ┌─────────────────┐
│  FortiGuard     │       │   Static URL    │       │   Advanced Web  │
│  Categories     │       │    Filters      │       │     Filters     │
├─────────────────┤       ├─────────────────┤       ├─────────────────┤
│ • Allow         │       │ • Simple        │       │ • Safe Search   │
│ • Block         │       │ • Wildcard      │       │ • YouTube Restr.│
│ • Monitor       │       │ • RegEx         │       │ • Header Inj.   │
│ • Warning       │       └─────────────────┘       └─────────────────┘
└─────────────────┘

Category-Based Filtering Actions

Inside a Web Filter profile, administrators define an explicit action for each group of sites:

• Allow: Passes the traffic directly to subsequent inspection engines (like Antivirus or Intrusion Prevention Systems) without user interruption.

• Block: Terminates the connection immediately. For HTTP/HTTPS sessions handled via proxy mode, a customizable HTML warning page displays in the browser.

• Monitor: Allows the traffic through silently, while logging the transaction for historical analysis and compliance auditing.

• Warning: Displays an intermediate warning page warning the user that the target category is discouraged. The user can click an “Accept and Proceed” button to bypass the warning. FortiOS logs this bypass decision along with the user’s identity.

Static URL Filtering

Static URL filtering lets you explicitly define custom exceptions that take precedence over general cloud-based FortiGuard category assessments.

Simple URL Matching

Performs an exact match against the hostname or explicit directory path string provided. For example, entering example.com will match [http://example.com](http://example.com) exactly.

Wildcard Matching

Employs standard wildcard markers (* and ?) to match dynamic subdomains or varying path hierarchies.

• *.github.com will match developer.github.com and gist.github.com.

• [www.company.com/hr/](https://www.company.com/hr/)* will match any document nested deep within that explicit personnel directory path.

Regular Expressions (RegEx)

Provides advanced pattern matching using standard Perl-Compatible Regular Expression (PCRE) notation. This is highly effective for identifying specific tracking tokens, repeating malicious file-name extensions, or complex query arguments embedded directly inside target URLs.

# CLI representation of a custom RegEx block pattern targeting explicit administrative pages
config webfilter urlfilter
    edit 1
        name "Custom-Security-Filters"
        config entries
            edit 1
                set url "^.*\\/(admin|backup|config|setup)\\.(php|bak|sql|cfg)$"
                set type regex
                set action block
                set status enable
            next
        end
    next
end

URL Filter Actions Defined

• Allow: Permits the URL to traverse the firewall if it matches the specific rule pattern, bypassing any subsequent static entries. However, the connection is still subjected to broader FortiGuard category verification.

• Block: Explicitly drops the packet and halts the session at the firewall level.

• Monitor: Logs the match for administrative visibility but allows evaluation to continue down the rule line.

• Exempt: Bypasses both subsequent Static URL checks and FortiGuard cloud category rating checks altogether, passing the packet straight to the firewall’s egress pipeline or secondary security engines. Exempting a site from web filtering also bypasses basic antimalware scanning unless structural profile parameters are adjusted.

Next Step in the Series: Now that you understand the foundational architecture and category configurations, proceed to Part 2: Advanced Control, SSL Optimization, and Policy Inspection Order to learn how to decrypt HTTPS traffic and enforce keyword-level blocking profiles.
